Wide Usage：The hole drill guide is widely used for hinge installation of cabinet, door, window, folding table and other furniture, very practical.
Eccentric Wheel Design： The hinge hole locater is designed for common 40mm connecting rod, with eccentric wheel hole position design, is moved up 1.5mm, the splicing is closer.
Reliable Material： The main body is made of aluminum alloy, the surface is sandblasted, the drill bushing is made of stainless steel, which is hard wearing and greatly extends the drilling life.

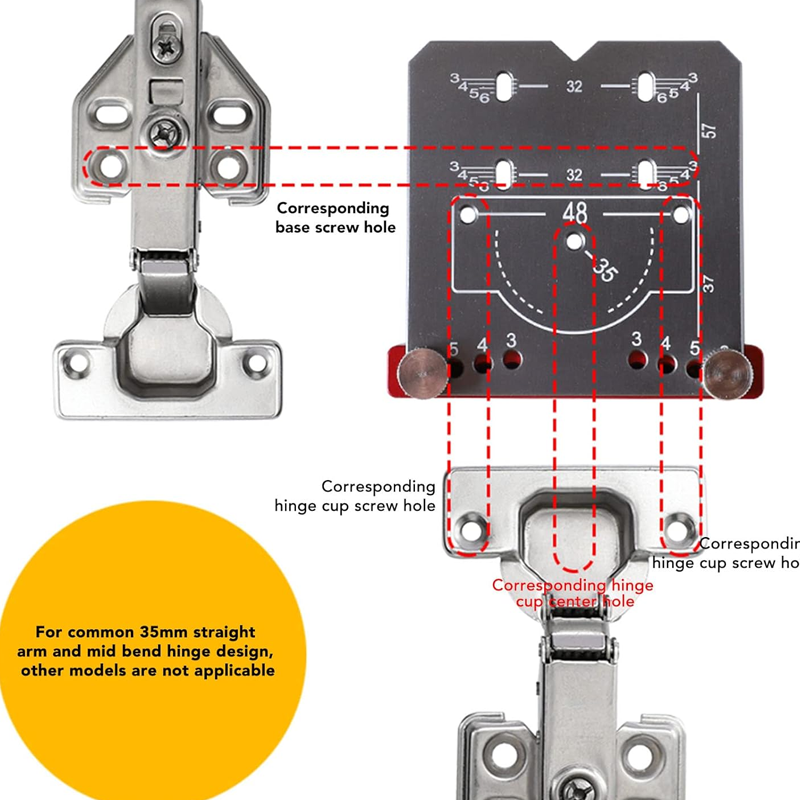

Main Function：This hole drill locator is used for common 35mm straight arm and mid bend hinges, greatly improves the mounting efficiency.

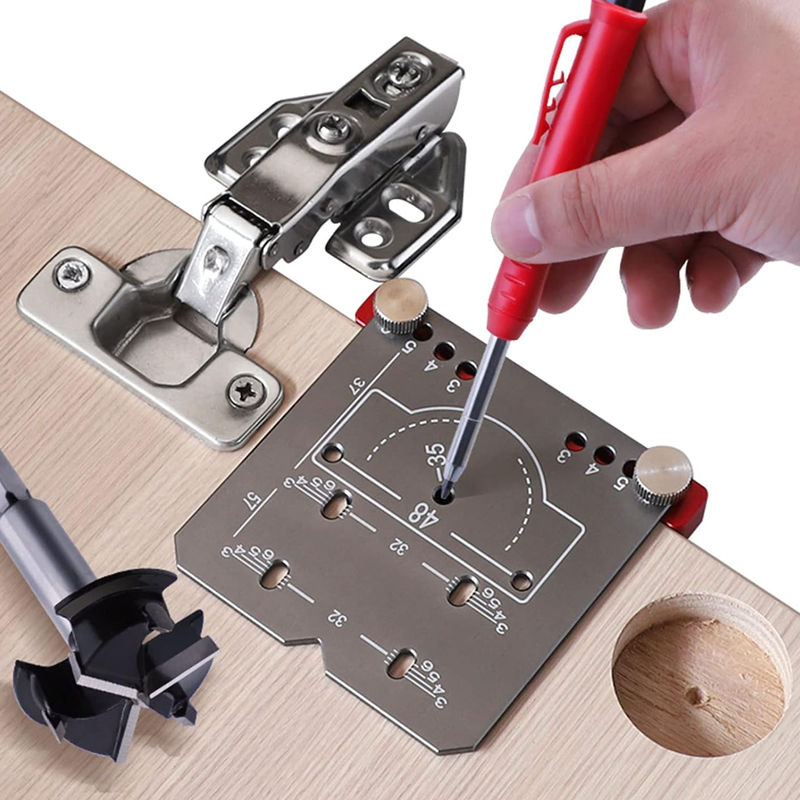

Easy To Use：Align the locator with the marking line and place on the cabinet door, cover the red baffle on the edge, use the marking tool to mark the hole center and the two screw holes.
